Custom Base Microwave 1 Drawer
Custom Base Microwave 1 Drawer

Alternative Views:
Choose your options:


Product Code: (C)BMC1E


Dimension:

Specification:

Reference Info:

Qty:
Description

Custom frameless full overlay microwave base cabinet with 1 drawer.
    • Select from 6 different collections with over 200 color choices, 14 cabinet box materials, and 20 drawer box options (4 for wooden, 4 for LEGRABOX, and 12 Wilsonart).

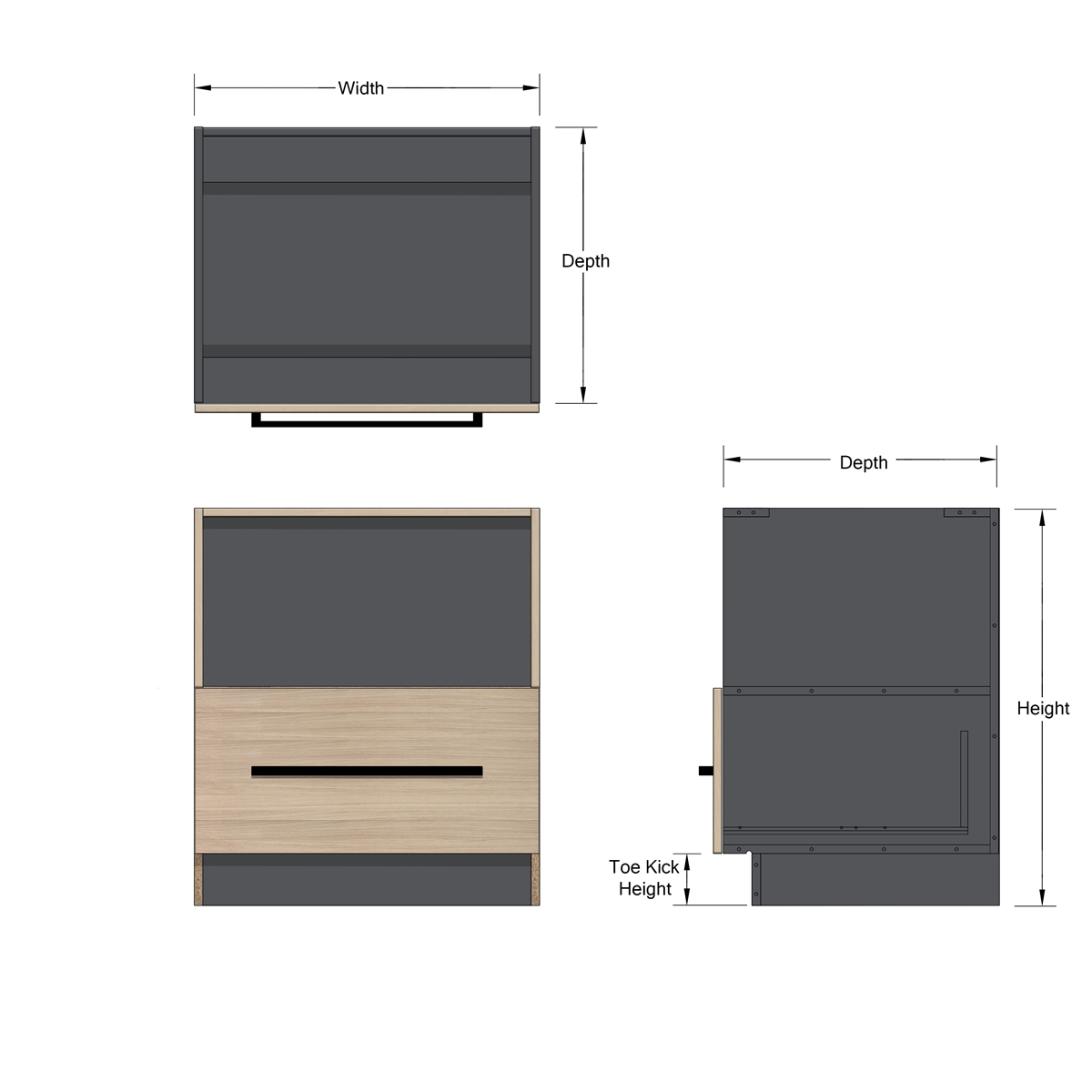

    • Outside cabinet width ranges from 24" to 42" in 1/16" increments, height from 30" to 36" in 1/4" increments, and depth from 24" to 30" in 3" increments.

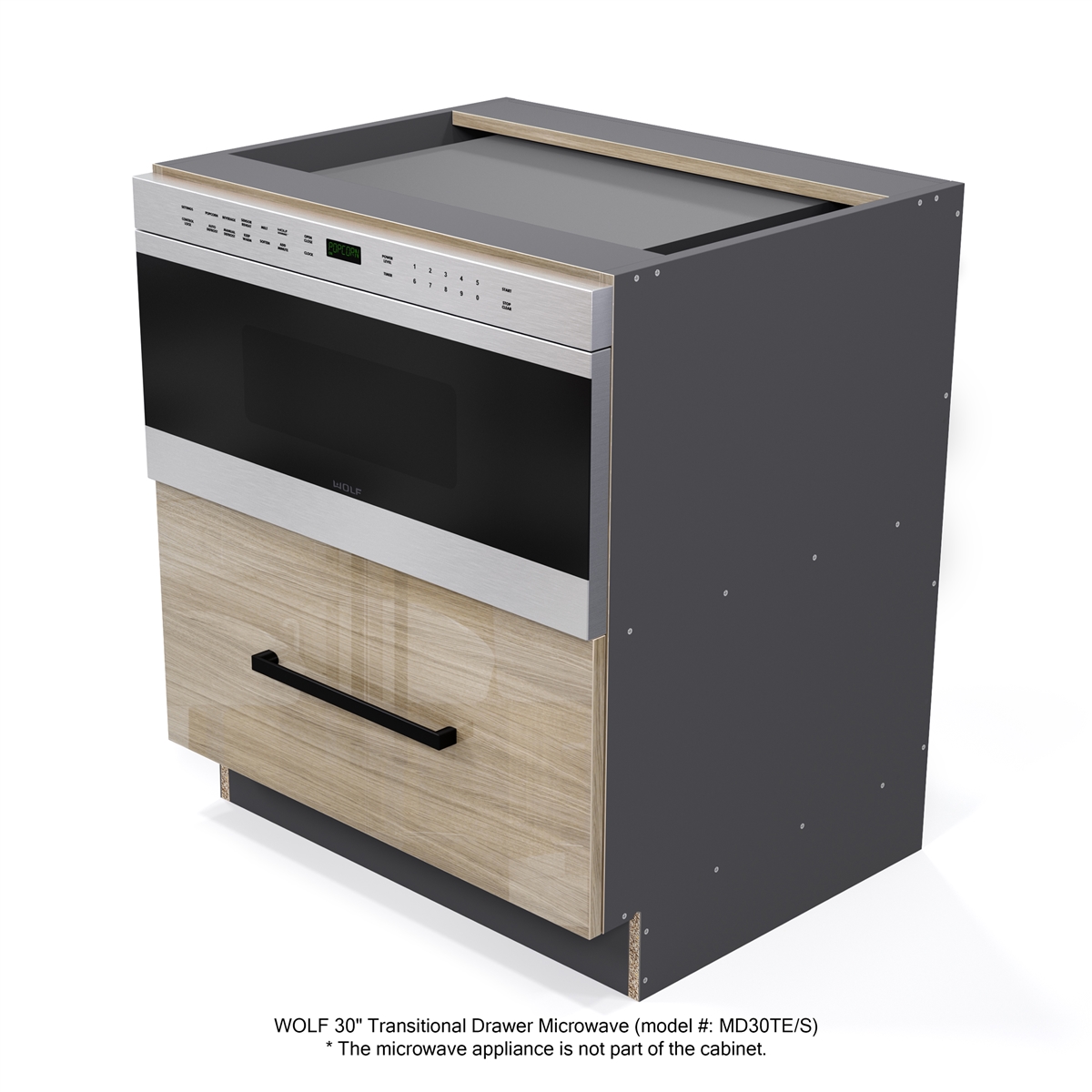

    • If Appliance Fitting is not needed, bottom drawer height (including 1/8" reveal) is 12" and the opening size varies depending on cabinet height selected (for 34-1/2" overall cabinet height with 4-1/2" toe kick, the microwave opening height is 17-1/4"). Door material filler (C)CDOR, which is sold separately under accessories, may be needed. If Appliance Fitting service is purchased, we will custom fit your microwave based on manufacturer's name and model number.
    • Customizable toe kick options for height and recess, including flush, standard 3" recessed back, or no toe kick.
    • Additional options are available for Blum Tip-on, GOLA handleless, appliance fitting, 3rd party accessories pre-drill, and assembly service.

Additional Information

    • Manufactured in Southern California. Ships flat-packed and ready to assemble (RTA) except for dovetailed wooden drawer boxes, which are preassembled, sanded, and then finished with clear UV coating. We can ship the entire order preassembled for an additional cost.

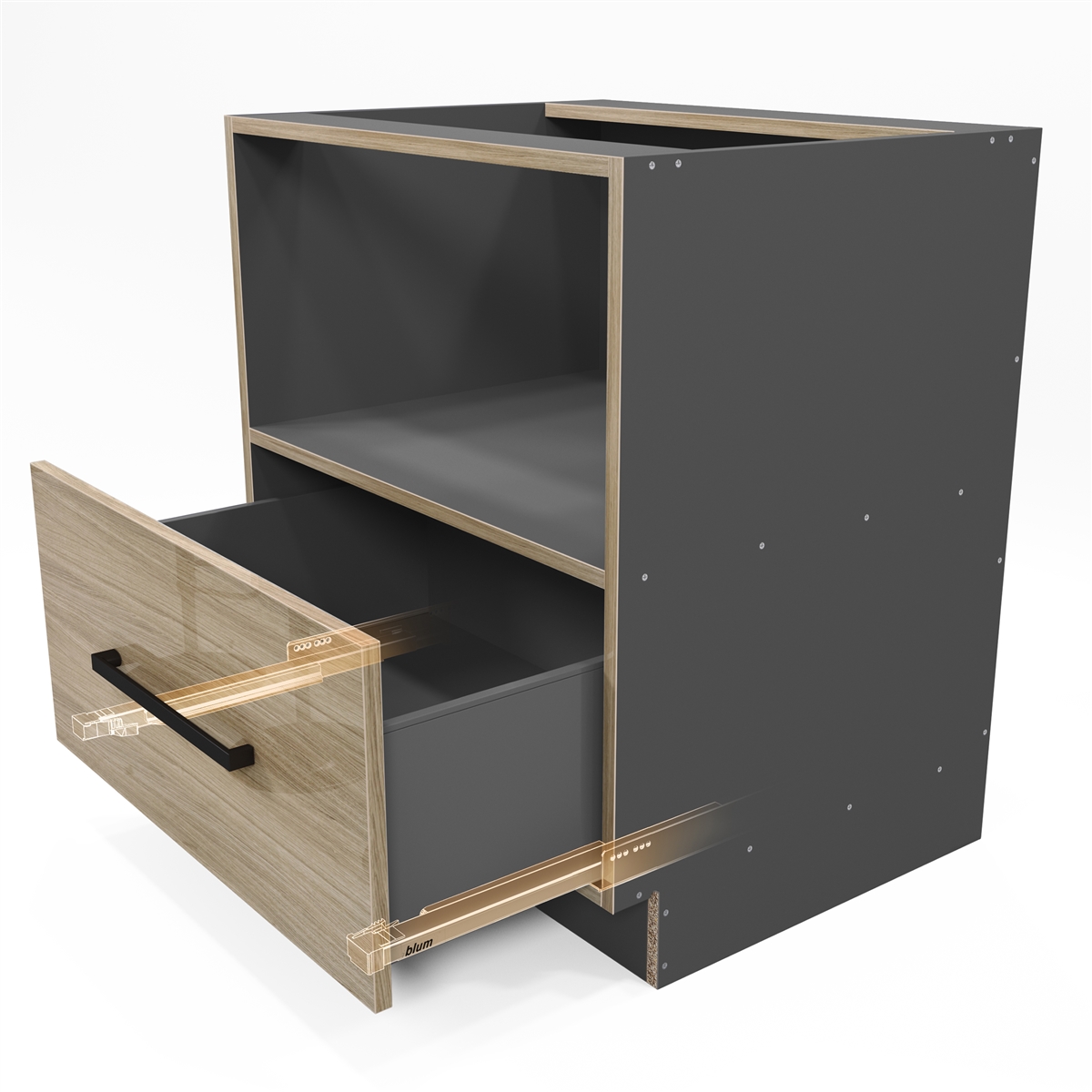

    • For cabinet unit that applies, hardware includes Blum CLIP top BLUMOTION INSERTA hinges, CLIP INSERTA mounting plates for tool-free installation and Blum TANDEM Plus BLUMOTION drawer glides.
    • For full cabinet unit, construction holes and screw heads will be visible on the outside of the cabinet once assembled; 3/4" thick door material end panels or custom sized doors need to be ordered to cover any exposed cabinet sides.
    • The edge banding for carcass/cabinet box matches the door color. Adjustable shelves edge banding matches interior color. Unless otherwise noted, we use 1mm thick PVC edge banding for protection and durability.
    • All cabinet handles/pulls, and 3rd party accessories/appliances shown in the product images are for illustration only and are not included.
