Hybrid Double Oven 2 Door 2 Drawer

Hybrid Double Oven 2 Door 2 Drawer

Alternative Views:


Choose your options:


Product Code: (H)DO2D2E


Dimension:


Specification:


Reference Info:


Qty:
Description

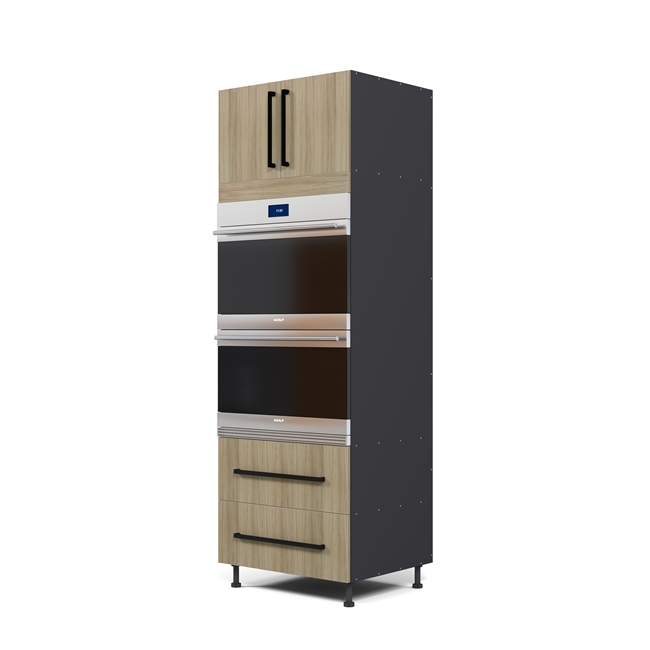

Hybrid frameless full overlay double-oven cabinet with 2 door and 2 drawer.

    • Select from 6 different Custom Door Collections with over 280 color choices, and 3 different stock cabinet box and drawer box combo options .
    • Outside cabinet dimension 30" in width, height choices of 84", 90", and 96", and 24" in depth.
    • Double oven appliance opening is 28-1/2" in width and 42-1/2" in height.
    • 4-1/2" high black ABS adjustable feet (set of 4) except for Stock Natural Maple Plywood cabinet box, which comes with a 4-1/2" high integrated toe kick with 3" recess.
    • Hinges can be installed on either the left or right, and hinge plate holes are predrilled on both side panels.
    • Both bottom drawers are 12" in height, including 1/8" reveal.
    • Doors are 13", 19" and 25" in height respectively, including 1/8" reveal.
    • No shelf included.

Additional Information

    • Doors, drawer fronts and door material panels are custom made in Southern California and will ship out in approximately 3 weeks.
    • Cabinet boxes, drawer boxes and hardware are pre-made either in the United States or overseas, and will ship out in about one week.
    • For full cabinet units, construction holes and screw heads will be visible on the outside of the cabinet once assembled; 3/4" thick door material end panels or custom sized doors need to be ordered to cover any exposed cabinet sides under Hybrid Accessories .
    • The edge banding for carcass/cabinet box matches the interior color of the cabinet box, as does the edge banding of the adjustable shelves. Unless otherwise noted, we use PVC edge banding for protection and durability.
    • All cabinet handles/pulls and 3rd party accessories/appliances are for illustration only and are not included.

Disclaimer: The Stock Textured White Plywood Boxes and Stock Orion Gray Plywood Boxes for this cabinet have a cabinet height approximately 3/16" shorter than the listed height due to sheet material limitations. Align the top of the tall cabinets with that of the wall cabinets when installing.
